    8 Ways Pluggable Relay Module PLC Output Amplifier Board DC 12V 24V

    Ask Lasest Price
    Brand Name : Jetacon
    Model Number : 16A1R8-12V or 24V
    Certification : UL, CE
    Price : Get latest price
    Payment Terms : T/T, L/C, Paypal, Payoneer
    Supply Ability : 1KK poles monthly
    Delivery Time : 7-20 working days
    • Product Details
    • Company Profile

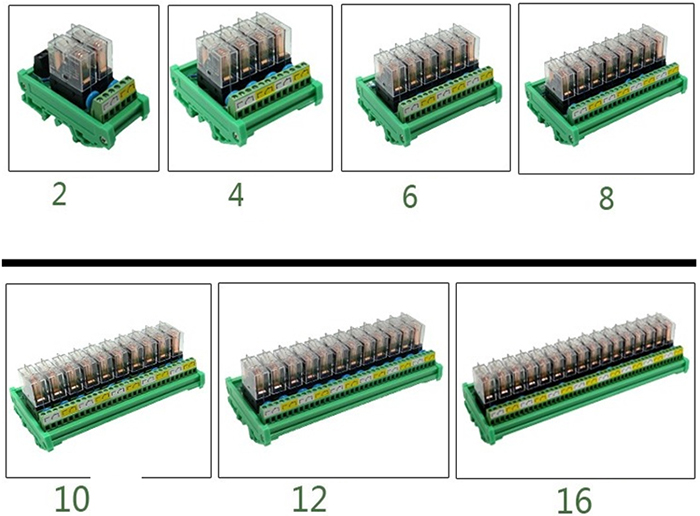

    8 Ways Pluggable Relay Module PLC Output Amplifier Board DC 12V 24V

    Description:

    - This product isolates or amplify the faint controlling signals(only need several mA current) through photoelectricity, then output large power controlling signal, to drive motor contactor magnetic valve etc.,


    Output type: Pluggable OMRON Relay
    I/O points: 8 channels
    Input signal : NPN and PNP compatible
    Input voltage: DC24V or DC12V ( DC5V, DC12V, AC110V, AC220V can be customized )
    Output voltage: AC / DC 0-250V
    Output Contacts: 1CO(SPDT) Contact capacity (resistive)
    16A 250VAC Operation voltage/Release voltage ≥ 75%Un /≤10%Un
    Operation time/Release time ≤15ms/≤8ms
    Switching frequency 0.1Hz
    Dimensions (WxH): 87×63mm
    Mounting: DIN rail 35mm
