    Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter

    Ask Lasest Price
    Brand Name : OEM
    Model Number : Mini-Load Cell
    Certification : CE
    Price : US $199.99
    Payment Terms : T/T, L/C, Paypal, Payoneer
    Supply Ability : 100 /Pieces per Day
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter

    Features & Applications:

    Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

    Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
    Capacity : 3kg 5kg, 10kg, 20kg, 50kg, 100kg, 200kg

    Cable Length: 3 meters long typically

    Parameters:

    Capacity0 - 3kg ~ 2000kgMaterialStainless Steel
    Rated output1.5 ±10% mV/VOutput Impedance350±3Ω
    Non-linearity0.05 % F.S.Insulation>5000MΩ/10VDC
    Hysteresis0.05 % F.S.Recommended Excitation2.5-5V
    Repeatability0.05 % F.S.Excitation max10V
    Creep(30min)0.05 % F.S.Compensated Temp Range-10~60
    Temp Effect On Output0.1 % F.S./ 10Operating Temp Range-20~80
    Temp Effect On Zero0.1 % F.S./ 10Safe Load1.2
    Protection ClassIP 65Ultimate Load Limit1.5
    Input Impedance350±15ΩCable Length2-3 x 3m
    Wire Connection

    Ex +: Red; Ex -Black; Sig +: Green; Sig -: White

    (Pressure is positive, pulling is negative);

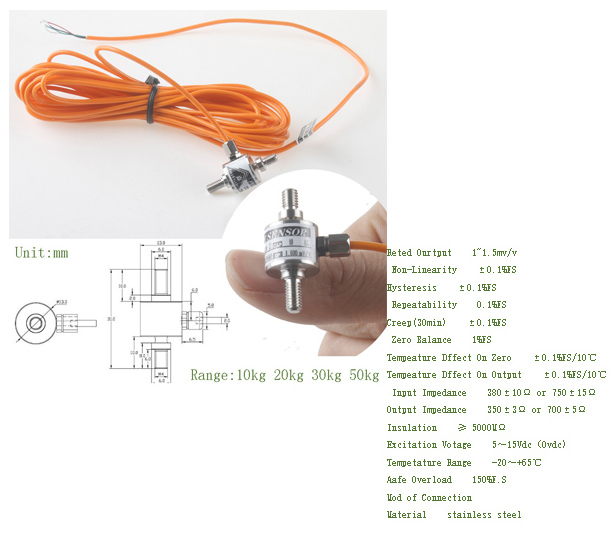

    Photos:


    Quality Mini Micro Load Cell Miniature Compression Tension Force Sensor Transducer 13mm Outer Diameter for sale
